Vertical Alignment LCD VA Negative Transmissive 3 Digit LCD Display 3.3V 14PIN
Detail Information
| LCD Type: | VA, Nagative |
| Viewing Angle: | 6 O'clock |
| Operating Temperature: | -30~+70℃ |
| Voltage: | 3.3V |
| Connector: | PIN |
Detailed Parameters:
| Module size | 42.0(W)* 47.6(H)* 2.1(T) mm | Display mode | VA, Negative |
| LCD viewing area | 39(W)* 39.2(H) mm | Polarizer type | Transmissive |
| Operating temp. | -20~+70℃ | LED backlight | White |
| Drive method | 1/4 Duty, 1/3 Bias | Working voltage | 3.3V |
| Viewing angle | 6 O'clock | Connection Way | PIN, 14 numbers |
Vertical alignment LCD VA negative emission 3-bit LCD display 3.3V 14PIN is a liquid crystal display with specific technical characteristics. Here is its detailed introduction:
Display technology: It adopts vertical alignment (VA) technology. When no voltage is applied, the liquid crystal molecules are perpendicular to the glass substrate. This technology can provide high contrast and a wide viewing angle, typically reaching around 178 degrees.
Display mode: It belongs to the negative emission mode, that is, it displays black without voltage and white when voltage is applied. In this display mode, the background is black and the characters or images are white, with high contrast and clear visual effect.
Number of bits and usage: 3-bit LCD display, usually used for displaying simple numbers, characters or symbols, such as electronic clocks, calculators, instrument meters and other equipment, capable of displaying 0-9 numbers and some basic letter and symbol combinations.
Power supply voltage: The operating voltage is 3.3V, belonging to low-voltage power supply, with low power consumption, suitable for portable devices powered by batteries.
Pin number: It has 14PIN pins, which are used to connect external circuits, such as microcontrollers, driver chips, etc., to achieve control of the display and data transmission. Different pins have different functions, including power pins, data input/output pins, control signal pins, etc.
Other characteristics: The operating temperature range is generally around 0℃-50℃, and the storage temperature range is around - 20℃-70℃. Some VA displays may also have strong anti-interference ability and fast response speed, meeting the needs of different application scenarios.
Product Tags:
|
|

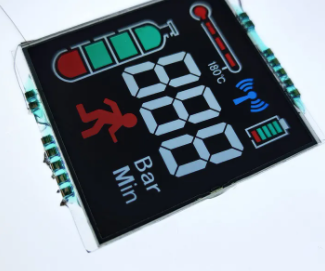

Vertical Alignment VA LCD Display Module with 3 Digit Negative Transmissive Screen 3.3V 14PIN Images
|
