| LCD Type: | VA, Nagative |
| Viewing Angle: | 6 O'clock |
| Operating Temperature: | -20~+70℃ |
| Voltage: | 5.0V |
| Backlight: | RGB Color |
Detailed Parameters:
| Outline dimension | 48.0(W)* 65.0(H)* 2.8(T) mm | Display mode | VA, Negative |
| LCD viewing area | 45(W)* 60(H) mm | Polarizer type | Transmissive |
| Driver IC | / | LED backlight | White |
| Drive method | 1/4Duty, 1/3 Bias | Working voltage | 3.3V |
| Viewing angle | 12 O'clock | Connection Way | PIN, 24 numbers |
| Operate temperature | -20℃~+70℃ | Storage temperature | -30~+80℃ |

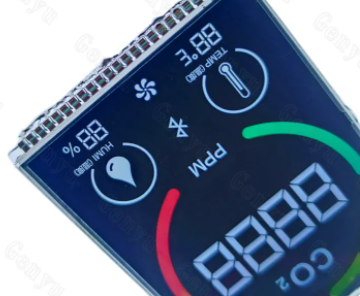

Size specification: The diagonal length of this display screen is 2.5 inches. This size is relatively compact and suitable for devices with limited space.
Display technology: It adopts VA (Vertical Alignment) display technology, which has advantages such as high contrast and wide viewing angle. The display mode is usually negative transmissive (VA/Negative/Transmissive), meaning that white characters or numbers are displayed on a black background. The display effect is clear and eye-catching.
Display content: A 4-bit 7-segment screen means it can display 4-bit numbers or characters. Each number or character is composed of 7 fields, and by controlling the on/off state of different fields, numbers from 0 to 9 and some simple letters and symbols can be displayed. It is suitable for displaying numerical values, status, etc.
Pin and interface: It is equipped with 24-pin pins. This interface method is usually a MCU interface, which can be connected to a microcontroller, facilitating data transmission and control with external circuits.
Viewing angle characteristics: The "6 o'clock" viewing angle indicates that the best viewing angle of this display screen is looking up from the bottom of the screen, similar to the 6 o'clock position on a clock. In this viewing angle, the best display effect can be achieved, with clear images and uniform colors.
Operating conditions: The working voltage is generally 5.0V, the working temperature range is usually between -20℃ and +70℃, and the storage temperature range is between -30℃ and +80℃. It can adapt to certain environmental temperature changes and is suitable for various industrial and consumer electronic devices.
